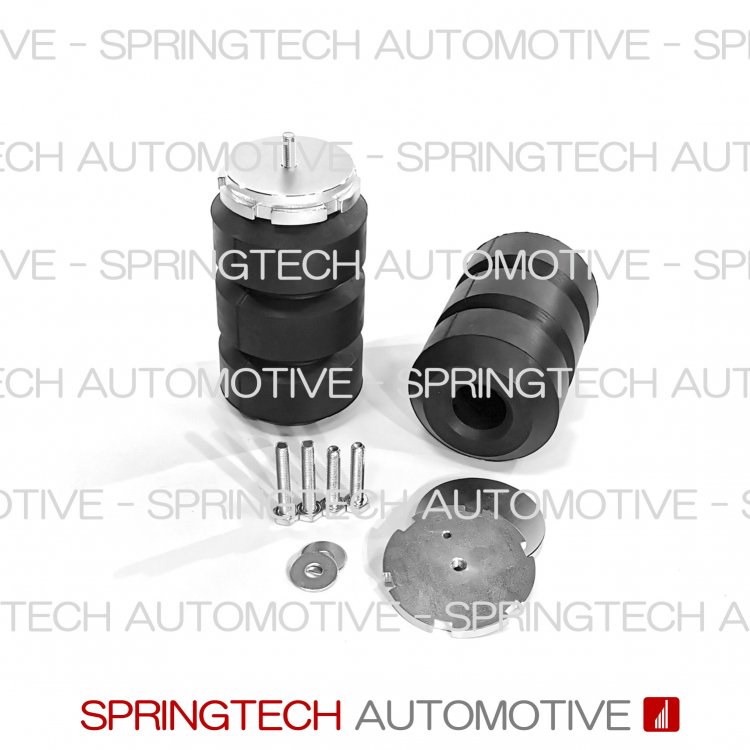

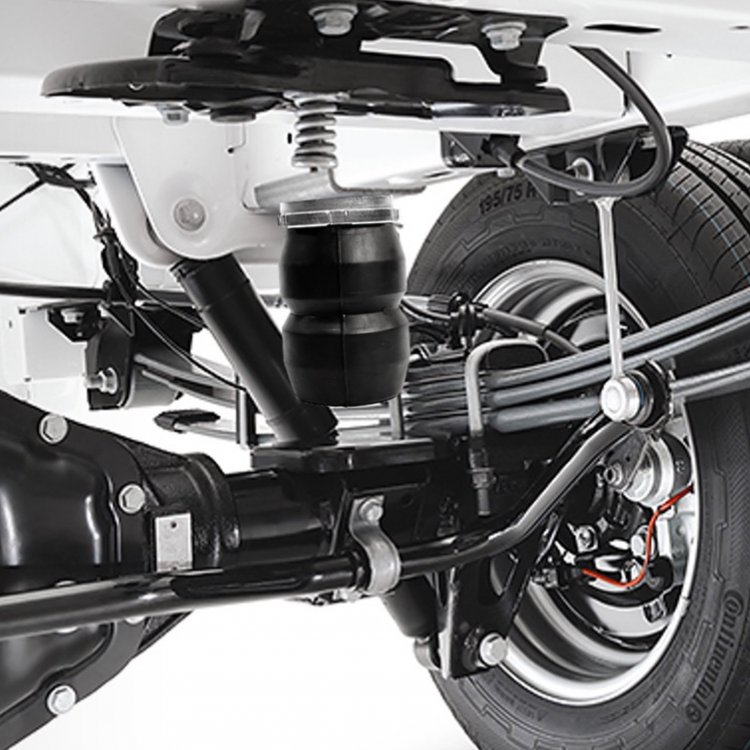

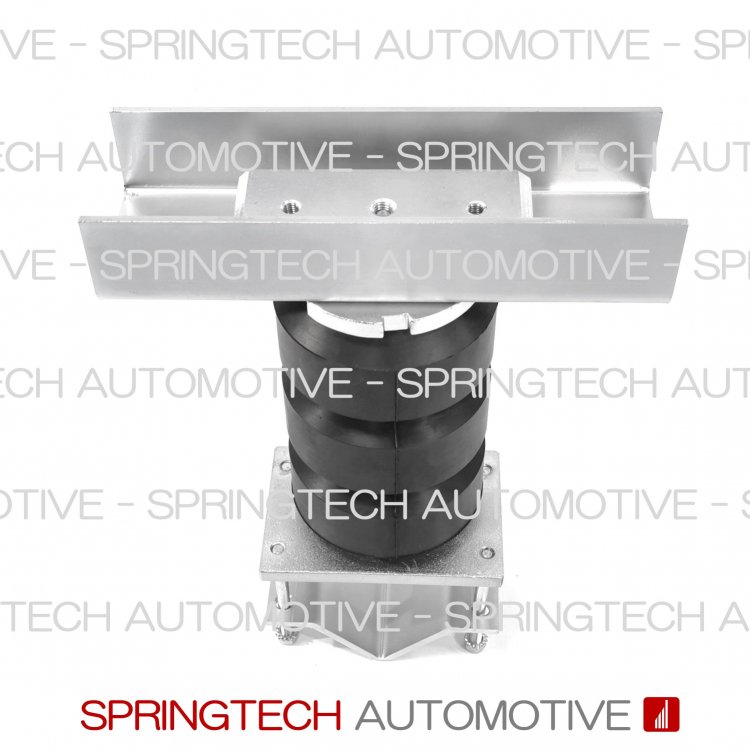

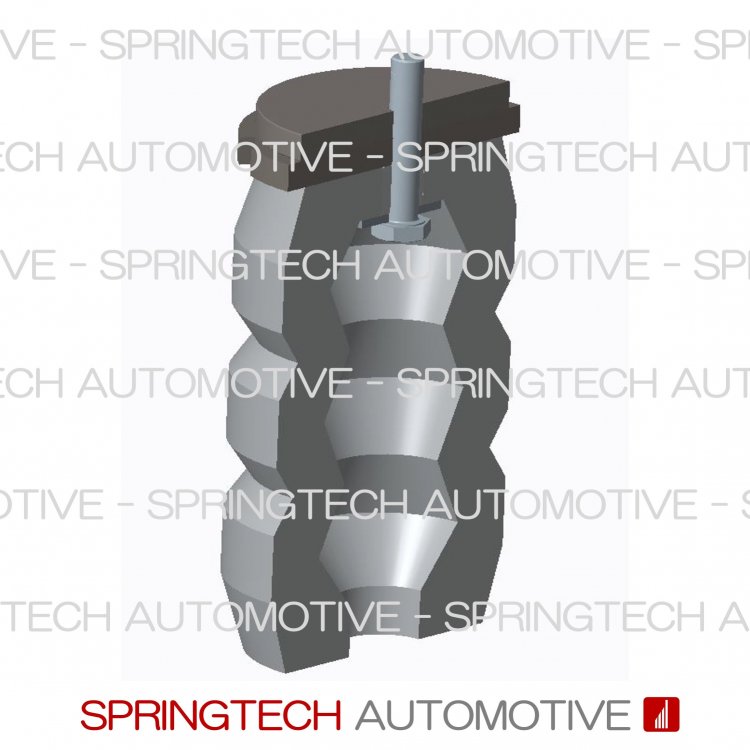

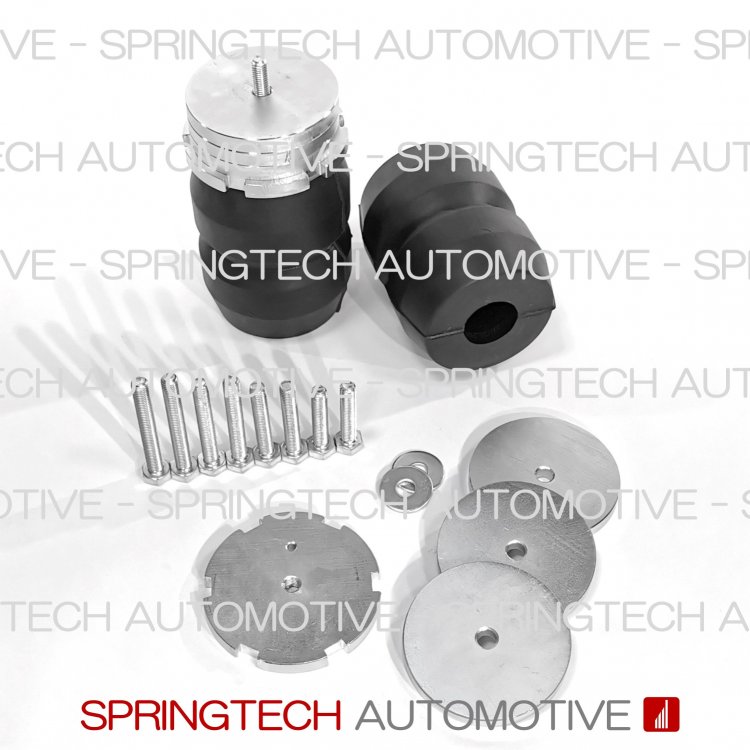

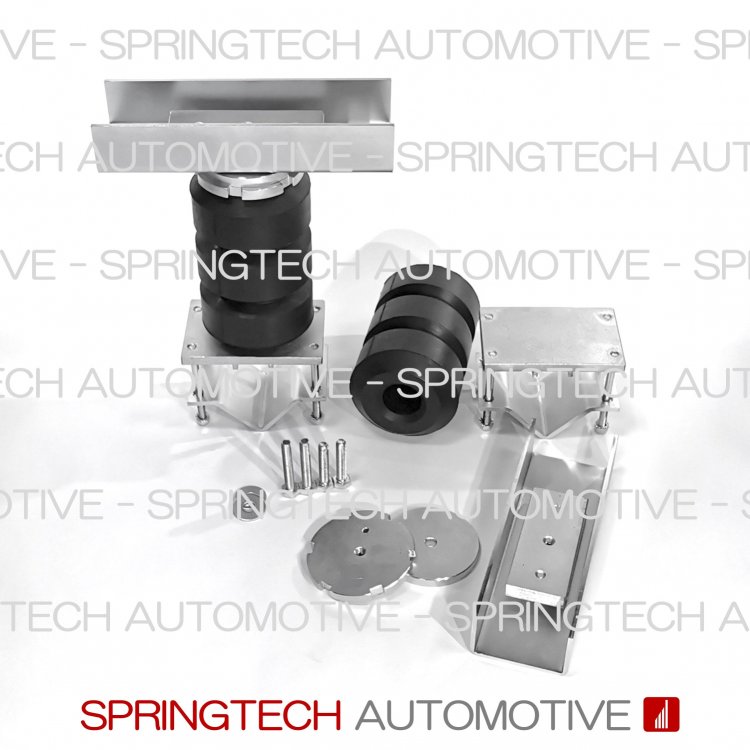

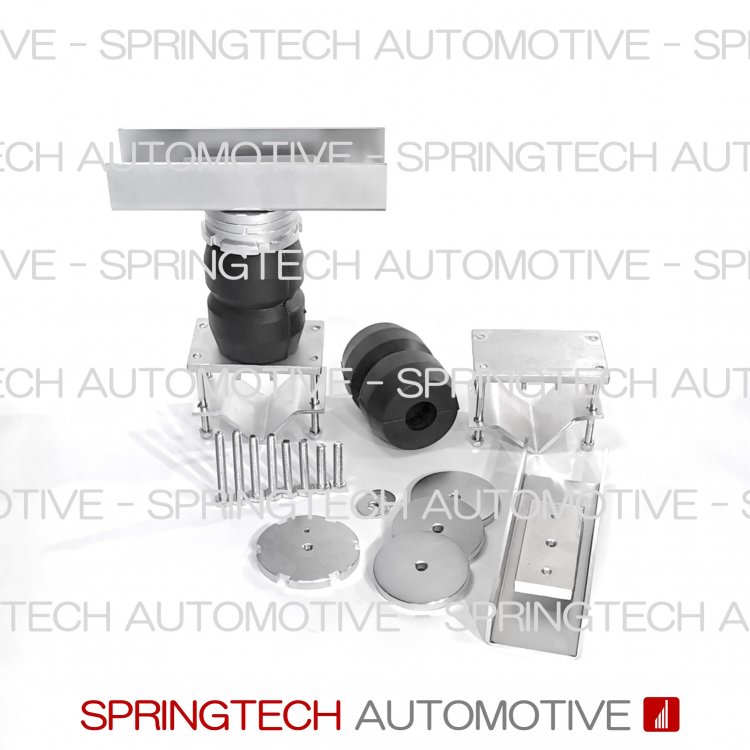

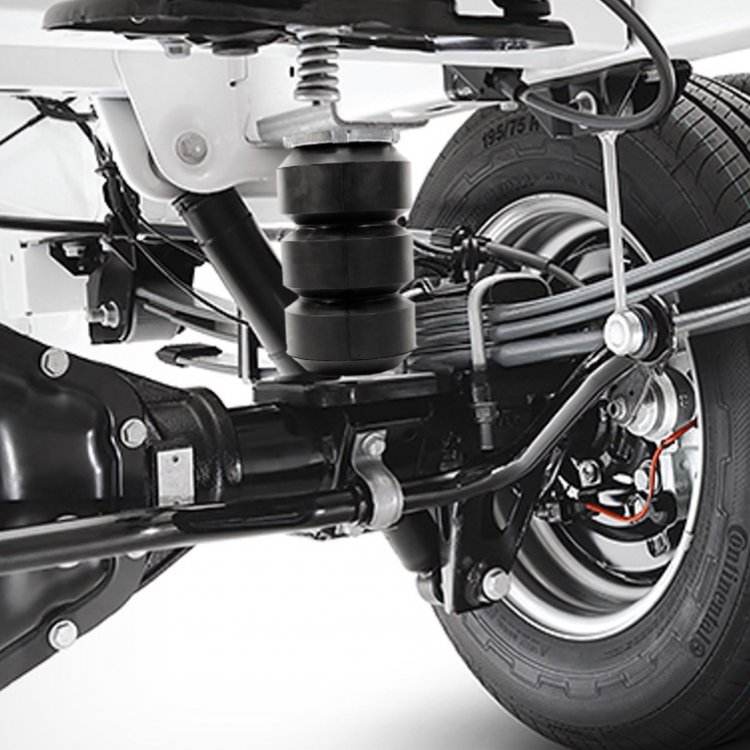

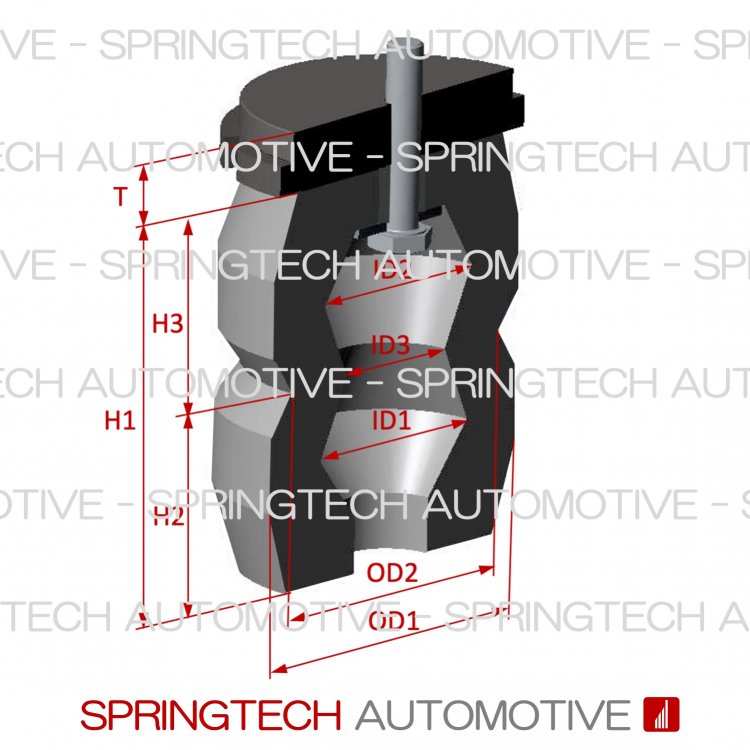

Helper Spring for Commercial Vehicles with Leaf Spring Suspension
-
Similar Topics
-
.thumb.jpg.f4cb67ddc9a3bc7fd457ba2f51f7970a.jpg)
By GreenGears Auto Limited
Published by GreenGears Auto | 9 minute read | Suspension Repair & Noise Diagnosis Guides
Suspension noise is one of the most common — and most frequently misdiagnosed — complaints in the automotive repair market. A clunk over bumps, a squeak when turning, a rattle at low speed, or a groan when braking all point to different failed components. Ordering the wrong part is the most expensive suspension noise mistake. The second most expensive is replacing an OEM component with an aftermarket equivalent that reintroduces the noise within 20,000 miles. At GreenGears Auto, we source OEM used suspension components across every major platform — the exact parts your vehicle was engineered around, at 50–70% less than new. This guide maps every suspension noise type to the specific OEM part responsible, so you can diagnose correctly, source smartly, and fix it once.
Why Suspension Noise Diagnosis Matters Before Ordering
Suspension noise is rarely random. Every noise type — clunk, squeak, creak, rattle, groan, knock — has a mechanical source that produces it consistently under specific conditions. Matching the noise to the condition it occurs in is the fastest and most reliable path to identifying the failed part before spending a single dollar on components.
68% Of suspension noise repairs involve a part that was already worn at the previous service appointment 3x More likely to misdiagnose suspension noise without a condition-specific approach to diagnosis 40% Of suspension noise comebacks involve an aftermarket part that failed to replicate OEM NVH characteristics 🔧 GreenGears Tip — The Condition Is the Clue Before ordering any suspension part, document the exact condition that produces the noise: What speed? What road surface? Braking, accelerating, or coasting? Turning left, right, or straight? Weight transfer forward, rearward, or lateral? Each answer narrows the diagnosis from dozens of possible components to two or three. This guide uses that condition-based approach throughout.
Suspension Noise Types — Matched to Conditions and Components
💥 Clunk Over Bumps
Both front corners → Strut top mounts / strut mount bearings One front corner → Sway bar end link or control arm bushing Rear, both sides → Rear sway bar links or trailing arm bushings Severe / loud clunk → Ball joint or worn strut Clunk with body lean → Sway bar bushing centre mount
🔊 Rattle at Low Speed
Front end, parking lot speed → Sway bar end links (most common) Under the car, loose sound → Heat shield or exhaust contact Front only on rough surfaces → Strut top mount bearing worn Rear of vehicle → Rear sway bar links or lateral arm bushings Goes away when braking slightly → Brake pad anti-rattle clips
😣 Squeak or Creak When Turning
Slow speed turns, steering input → Upper strut mount bearing Full lock or near-lock turning → CV axle (inner or outer joint) Squeak from suspension travel → Dry ball joint or tie rod end boot Creak when weight shifts → Control arm bushing (rubber drying) Squeak with steering wheel movement → Power steering rack mount
💨 Groan or Moan Under Load
Braking — front end groans → Front struts weak / bottoming Acceleration — rear groans → Rear trailing arm or leaf spring bushing Cornering weight transfer → Sway bar bushings or end links Parking manoeuvres → Power steering rack or CV joint Going over speed bumps slowly → Strut bump stop worn or missing
🔩 Knock at Specific Speeds
Highway speed vibration / knock → Wheel bearing or driveshaft balance Knock that disappears above 40 mph → Tyre flat spot or wheel balance Knock under hard braking → Loose brake caliper bracket Metallic knock in turns → Worn wheel hub bearing Knock with steering input → Loose tie rod end or steering rack
🎵 Hum or Drone
Constant hum, speed-dependent → Wheel bearing failure Hum changes on lane change → Confirms wheel bearing (load shift) Hum in turns only → Bearing load-dependent failure stage Hum from rear only → Rear wheel bearing or differential Hum with ABS light → Wheel speed sensor integrated in hub
Top OEM Parts for Fixing Suspension Noise — By Component
Here is every OEM suspension component responsible for noise, ranked by how frequently it is the primary cause of a suspension noise complaint in the repair market.
🏆 #1 Most Common Noise Source Rattle / Clunk at Low Speed
Sway Bar End Links
OEM Used Price: $25–$80 per side Noise: Rattle & Clunk over bumps Sway bar end links are responsible for more suspension noise complaints than any other single component — by a significant margin. They are also the most frequently overlooked during routine inspections because they appear robust externally even when the internal ball joint or bushing has completely failed. A failed end link allows the sway bar to float freely at its mounting point, producing the distinctive metallic rattle that is loudest at parking lot speeds and over sharp low-speed bumps.
Why OEM end links outperform aftermarket:
OEM end links use factory ball joint preload — aftermarket units frequently feel loose immediately after installation or develop play within 15,000 miles due to inferior ball joint quality OEM rubber boots seal the ball joint from contamination for the expected service life — aftermarket boots crack or split earlier, accelerating joint wear Factory geometry ensures the correct sway bar angle at the connection point — incorrect aftermarket length changes effective sway bar stiffness and can reintroduce body roll Replace front and rear end links as sets — if one has failed, the others are at similar mileage and condition High-frequency platforms: Ford Explorer, Chevrolet Silverado / Tahoe, Toyota RAV4, Honda CR-V, BMW 3 Series / 5 Series, Subaru Outback — all see very high sway bar end link failure rates at 60,000–90,000 miles.
🔝 #2 Most Misdiagnosed Noise Source Clunk / Creak When Steering
Strut Top Mounts & Mount Bearings
OEM Used Price: $45–$140 per side Noise: Clunk over bumps / Creak when turning Strut top mounts are the rubber-isolated mounting points where the strut assembly connects to the vehicle body at the top of the wheel arch. They serve two critical functions: absorbing the high-frequency vibration that would otherwise transmit directly from the strut into the cabin, and providing the pivot bearing that allows the front strut to rotate as the wheels steer. A failed strut mount produces a clunk that is almost identical to a ball joint or control arm bushing — making it one of the most commonly misdiagnosed suspension noise sources in the market.
The strut mount bearing (also called the upper strut bearing or strut bearing plate) is a separate component from the rubber isolator on many designs — inspect both independently A worn strut mount bearing specifically causes a scrubbing or creaking noise during steering input at low speed — distinct from the bump-induced clunk of a failed rubber isolator OEM strut mounts are tuned to the exact spring rate and damping characteristics of the OEM strut — aftermarket mounts with different rubber compound durometer alter the suspension's NVH characteristics Always replace strut top mounts when replacing struts — the labour overlap makes it a negligible additional cost; replacing the strut while leaving a worn mount produces a disappointing result for the customer Highest failure frequency: Toyota Camry, Honda Accord, Ford Fusion, Chevrolet Malibu, Volkswagen Jetta / Passat — all see high strut mount failure rates at 70,000–100,000 miles
⚙️ #3 Highest Impact on Multiple Symptoms Clunk / Creak / Alignment Drift
Control Arm Bushings & Complete Control Arms
OEM Used Price: $60–$220 per arm Noise: Clunk over bumps / Creak under load Control arm bushings are the rubber-to-metal pivot sleeves that allow the control arm to rotate through its travel arc while isolating chassis vibration from the steering and body. When they crack, collapse, or separate, the control arm gains unwanted freedom of movement — producing a clunk or knock that changes with road surface, vehicle speed, and braking load. Beyond noise, failed control arm bushings directly compromise wheel alignment geometry on every bump, causing rapid and uneven tyre wear that is the most expensive secondary consequence of delayed bushing replacement.
Control arm bushing failure produces a clunk that is typically heard and felt simultaneously — the noise is accompanied by a subtle kick through the steering wheel or floor on the affected side OEM used complete control arm assemblies are almost always more cost-effective than pressed-in bushing replacement — they eliminate the need for a hydraulic press, provide new OEM bushings, and install in the same time as the bare arm OEM rubber compound is formulated for the correct balance of compliance and isolation for the specific vehicle — aftermarket urethane bushings are stiffer, transmit more road noise, and change the suspension's designed handling characteristics Always perform a 4-wheel alignment after control arm replacement — suspension geometry will have shifted even when the replacement is exact Highest failure frequency: Ford Explorer (front lower), Honda Accord (front lower), Toyota Camry (front lower and rear), BMW 3 Series (front lower thrust arm), Subaru Outback (front and rear) 🔧 Complete Arm vs. Bushing Replacement — The Economics A pressed-in bushing replacement requires a hydraulic press, alignment fixture, and specialist labour — typically $80–$150 per bushing in labour alone. An OEM used complete control arm assembly installs in the same time as the bare arm with no press required, and costs $60–$220 in parts. For most common platforms, the complete arm is the smarter purchase.
⚠️ #4 Most Safety-Critical Noise Source Clunk / Squeak — Safety Critical
Ball Joints (Upper & Lower)
OEM Used Price: $45–$180 per joint Noise: Clunk over bumps / Squeak when turning Ball joints are the pivot points between the control arm and the steering knuckle — they allow the wheel to simultaneously steer left and right and move up and down with suspension travel. A worn ball joint produces a clunk that is very similar to a strut mount or control arm bushing failure, with one critical distinction: a ball joint does not just make noise. A failed ball joint is a safety hazard. Ball joint separation at highway speed causes immediate and catastrophic loss of directional control. Any clunk that cannot be definitively attributed to a bushing or end link must include ball joint inspection before closing the diagnosis.
Lower ball joints carry the vehicle's weight and are significantly more wear-prone than upper joints on double-wishbone suspension designs A squeaking ball joint without play indicates the dust boot has failed and the joint is dry — replacement is urgent even before play develops Ball joint play test: load the suspension at the wheel hub and measure movement at the ball joint with a dial indicator; compare to the manufacturer's maximum allowable play specification OEM used ball joints from low-mileage donors retain factory pivot preload and feel — aftermarket ball joints frequently feel notchy or overly loose, changing steering feel even when mechanically within specification On vehicles with pressed-in ball joints (most modern unibody platforms), a complete OEM used control arm assembly is the most cost-effective and fastest replacement route Highest failure frequency: Toyota 4Runner / Tacoma (upper ball joints), Ford Explorer (lower), Dodge Durango / Ram 1500 (lower), Jeep Wrangler (all four) ⚠️ Never Delay Ball Joint Replacement A clunking ball joint with measurable play is not a "monitor and watch" situation. Ball joint failure at highway speed causes the knuckle to separate from the control arm — the wheel folds under the vehicle and directional control is lost instantly. This is the one suspension noise that demands immediate action, not a future appointment.
🔻 #5 Highest Impact on Ride & Safety Clunk / Thud / Excessive Bounce
Struts & Shock Absorbers
OEM Used Price: $80–$280 per unit Noise: Thud / Clunk over sharp bumps Worn struts and shocks contribute to suspension noise in two distinct ways. First, a mechanically failed strut (blown seal, collapsed internal valve, or seized piston) produces a thud or clunk when the suspension compresses rapidly over sharp bumps — because the damper provides little or no resistance and the suspension reaches its mechanical travel limit. Second, worn struts allow excessive body motion that loads adjacent components — particularly the sway bar system, strut top mounts, and control arm bushings — beyond their design parameters, causing them to make noise even when they themselves are not the primary failure.
A simple test for strut condition: push down sharply on each corner of the vehicle and release. More than one full oscillation before settling indicates a worn damper Look for oil streaking on the strut body — active fluid weeping from the shaft seal indicates imminent complete damper failure OEM struts are tuned to the exact spring rate and vehicle weight of your specific model — aftermarket struts calibrated for a "universal" application produce a noticeably different ride character Always replace struts in axle pairs — mismatched damping side-to-side causes handling imbalance that the driver feels as a pull or drift under braking Replace strut top mounts and bump stops at the same time — labour is already invested and both components are critical to the strut's noise and performance characteristics Highest failure frequency: Honda CR-V, Toyota Camry, Ford Escape, Chevrolet Equinox — all at 60,000–90,000 miles front strut interval
🌀 #6 Most Underrated Noise Fix Clunk / Squeak During Body Roll
Sway Bar Bushings (Centre Mount Bushings)
OEM Used Price: $20–$60 per set Noise: Squeak / Clunk in corners & over bumps Sway bar centre mount bushings are the rubber bushings that secure the sway bar to the vehicle subframe or body at two centre mounting points. They are among the least expensive suspension noise repairs available — and among the most frequently overlooked during a diagnostic inspection because they are not as visually obvious as a broken end link or a torn ball joint boot. When they dry out, crack, or collapse, the sway bar fretts against the mounting bracket — producing a squeak or creak that is most noticeable during cornering, over bumps, or during any manoeuvre that loads the sway bar laterally.
The squeak produced by dry sway bar bushings is the most DIY-addressable suspension noise on most vehicles — the bushings are accessible without suspension disassembly on most platforms OEM rubber compound is the correct specification — aftermarket polyurethane bushings are frequently too stiff, transmit road noise, and squeak due to incompatibility with factory anti-friction coatings on the bar Apply the correct grease to the bar-to-bushing interface at installation — a dry bar will squeak through a new bushing within a few thousand miles regardless of bushing quality Replace sway bar bushings as a complete set (all four locations — two per axle) in a single service appointment; the cost difference is negligible and prevents a comeback Highest failure frequency: All platforms at 60,000–100,000 miles; accelerated by cold climates where rubber degradation is faster
🎵 #7 Most Distinctive Noise Pattern Hum / Drone — Speed Dependent
Wheel Hub & Bearing Assemblies
OEM Used Price: $80–$220 per hub Noise: Hum / Groan — changes with speed and cornering Wheel hub bearing failures produce the most diagnostically distinctive noise pattern in the suspension system — a humming or droning sound that changes pitch with vehicle speed and shifts in intensity during cornering as lateral load transfers to or away from the failing bearing. Despite this distinctive pattern, hub bearing failures are routinely misdiagnosed as tyre noise or differential whine, leading to expensive unnecessary repairs. Confirming the diagnosis with a load-shift test — noting whether the noise increases when weight shifts left (right bearing failing) or right (left bearing failing) during a gentle lane change — is the most reliable confirmation method before ordering parts.
On modern vehicles, the wheel hub assembly contains the bearing, ABS tone ring, and wheel speed sensor in a sealed unit — the entire assembly is replaced as a single component OEM hub assemblies are essential for ABS compatibility — the tone ring pitch and sensor air gap are calibrated to the vehicle's ABS module; aftermarket hubs with different tone ring specifications trigger ABS fault codes Replace wheel hub bearings in pairs on the same axle when both reach similar mileage — if one has failed at 90,000 miles, the other is within 10,000–20,000 miles of the same failure Always inspect the knuckle bore for wear or damage before installing a new hub — a scored or out-of-round knuckle bore will accelerate bearing wear on the replacement unit Highest failure frequency: Subaru Outback / Forester (rear), Ford Escape / Focus (front and rear), Chevrolet Equinox / Terrain (front), Toyota RAV4 (front)
🔗 #8 Steering-Related Noise Source Knock / Clunk — Steering Input
Tie Rod Ends (Inner & Outer)
OEM Used Price: $30–$90 per end Noise: Knock / Clunk when turning / on bumps Tie rod ends connect the steering rack to the steering knuckle and are the final link in the steering input chain. A worn tie rod end produces a knocking or clunking noise during steering input, particularly when turning over rough surfaces that simultaneously load the tie rod laterally and longitudinally. Beyond noise, worn tie rod ends cause rapid outer tyre wear and alignment drift — the wheel toe changes dynamically on every bump, constantly fighting the alignment geometry back to correct.
Inner tie rod ends (at the rack) are less commonly replaced than outer ends but fail on high-mileage vehicles — inner failure produces a more pronounced knocking under lateral steering load Always replace tie rod ends in pairs — if the outer end on one side has failed, the opposite outer end is at the same mileage and should be replaced simultaneously A 4-wheel alignment is mandatory after tie rod end replacement — wheel toe will have shifted from the worn end geometry OEM tie rod ends use factory ball joint preload matched to the vehicle's steering feel calibration — aftermarket ends with different preload alter steering weight and feedback Inspect the dust boot before purchasing a used tie rod end — a torn or cracked boot indicates the joint has been running dry, which accelerates ball joint wear internally
🛡️ #9 The Forgotten Component Thud at Full Compression
Bump Stops & Jounce Bumpers
OEM Used Price: $15–$50 per unit Noise: Thud / Crash over severe bumps Bump stops (also called jounce bumpers) are the polyurethane or rubber buffers that limit suspension travel at maximum compression — preventing metal-to-metal contact between the suspension and chassis. They are almost universally overlooked during suspension inspections because they are tucked inside the spring or strut assembly and not visible without disassembly. A missing or deteriorated bump stop produces a harsh, resonant thud over severe bumps that is often misdiagnosed as a strut or spring failure — because the symptom occurs at the same point in the suspension travel where a bottomed-out strut would produce the same noise.
Always inspect and replace bump stops when replacing struts or coil springs — they are inexpensive, accessible when the strut is already removed, and their failure causes disproportionately harsh noise OEM bump stops are tuned to the specific travel limit of your vehicle's suspension geometry — aftermarket equivalents are often made from stiffer or softer material that changes the impact force at the travel limit Deteriorated bump stops crumble rather than compress cleanly — fragments can lodge in the spring or strut assembly and cause secondary noise after the strut is reinstalled On vehicles with air suspension, inspect the air spring jounce bumper specifically — these are more expensive than conventional bump stops and are frequently missed in air suspension service
🌀 #10 High-Frequency Noise Source Squeak / Creak During Suspension Travel
Coil Spring Isolators (Spring Seats & Pads)
OEM Used Price: $20–$55 per set Noise: Squeak / Creak — suspension travel Coil spring isolators — the rubber or polyurethane pads that sit between the coil spring and the spring seat on both ends of the spring — are responsible for a creaking or squeaking noise during suspension travel that is very difficult to localise without disassembly. They are also frequently the last component replaced after multiple rounds of bushing, end link, and bearing replacement fail to eliminate a persistent squeak. Isolators dry out, crack, and lose their compression properties over time, allowing the spring to fret directly against the metal spring seat — producing a noise that appears to come from everywhere and nowhere simultaneously.
Always replace spring isolators when replacing struts or coil springs — they are negligible in cost and are otherwise inaccessible without the same labour A dried or cracked lower isolator is the most common source of the persistent squeak that survives multiple suspension repairs — if a squeak has survived bushing, end link, and strut mount replacement, inspect the isolators next OEM isolators use the correct rubber compound for the vehicle's spring rate — a stiffer or softer aftermarket isolator alters the spring's effective rate at the seat contact point Contamination of the isolator from brake fluid, oil, or road chemicals accelerates cracking — inspect for contamination when diagnosing a squeak on a relatively low-mileage vehicle
OEM Used vs. Aftermarket for Suspension Noise Repairs
Suspension noise is uniquely sensitive to NVH (noise, vibration, and harshness) characteristics of individual components — more so than almost any other vehicle system. This is why aftermarket suspension parts produce a higher rate of noise comebacks than any other repair category.
🏭 Aftermarket Suspension Parts
Bushing rubber compound often stiffer than OEM — transmits road noise into cabin Ball joint preload frequently differs — can feel notchy or loose from day one Strut damping curves may not match OEM — noise reappears under load conditions Sway bar end link ball joint quality varies widely — 15,000-mile failures common Wheel hub ABS tone ring pitch may differ — triggers ABS fault codes post-install Spring isolator compound may change effective spring rate — new squeaks possible 40% of suspension noise comebacks involve aftermarket parts that fail to match OEM NVH
♻️ OEM Used — GreenGears Auto
Factory rubber compound — correct NVH isolation as engineered Factory ball joint preload — original steering feel preserved OEM damping curves — ride and noise characteristics exactly match design intent Factory end link quality — full OEM service life on a low-mileage unit Correct ABS tone ring — zero fault codes post-installation Original isolator compound — spring rate and noise isolation maintained Mileage-verified from documented low-mileage donor vehicles
Suspension Noise Quick Diagnosis Reference
Noise Type Condition Most Likely Part OEM Used Price Priority Rattle at low speed Parking lot, rough road Sway bar end links $25–$80/side 🟡 Medium Clunk over bumps Both front corners Strut top mounts $45–$140/side 🟠 Medium-High Clunk — one corner Bumps / braking Control arm bushing / ball joint $60–$220 🔴 High Squeak when turning Low speed / full lock Strut mount bearing / ball joint boot $45–$140 🟠 Medium-High Thud over sharp bumps Full suspension compression Bump stop / strut $15–$280 🟠 Medium-High Clunk — safety concern Any / with play felt Ball joint $45–$180 🔴 Safety Critical Squeak — body roll Cornering / bumps Sway bar bushings $20–$60/set 🟡 Medium Hum / drone Speed-dependent / cornering Wheel hub bearing $80–$220 🔴 High Knock — steering input Turning over rough surface Tie rod end $30–$90 🔴 High Persistent squeak Any suspension travel Spring isolators $20–$55/set 🟡 Medium
Smart Bundling — Eliminate All Sources in One Appointment
Suspension noise repairs have significant labour overlap — components in the same area of the vehicle require the same disassembly regardless of which one is being replaced. Bundling adjacent replacements into a single appointment is the single most effective way to reduce total repair cost and prevent a comeback from a secondary component that was borderline at the time of the primary repair.
Front strut replacement: always bundle with strut top mounts, bump stops, spring isolators, and sway bar end links — all require the strut to be removed or are directly adjacent Control arm replacement: always bundle with a 4-wheel alignment, and inspect tie rod ends while the steering geometry is already disturbed Ball joint replacement: always bundle with an alignment and inspect the control arm bushing at the same pivot — if the bushing is worn, replace the complete arm Sway bar end links: always replace all four simultaneously — they are at the same mileage and the cost difference between replacing two vs. four is $50–$80 in parts against the same labour time Wheel hub bearing: inspect and replace brake rotors and caliper hardware at the same time — the hub removal provides access to the rotor and caliper that would otherwise require additional labour Rear shock replacement: bundle with rear sway bar links and any rear trailing arm bushings — the rear suspension is already disturbed and these are high-frequency adjacent failures
✅ GreenGears Auto's Suspension Parts Promise Every OEM used suspension component in our inventory is inspected for rubber integrity, boot condition, ball joint play (where applicable), and documented donor mileage before listing. We back every part with our 15 to 90-day satisfaction guarantee and free shipping across the continental US — so you can fix the noise once and trust the fix.
Ready to Fix Your Suspension Noise — For Good?
Tell us your year, make, model, and the noise you're hearing — our suspension parts specialists will identify the right OEM used component and get it to you in 3–7 days with free US shipping.
GreenGears Auto — Drive Green. Drive Smart.
✅ OEM Quality Verified 🚚 Free US Shipping ↩️ 15-Day Returns 📋 Mileage Documented link hidden, please login to view -
By GreenGears Auto Limited
Published by GreenGears Auto | 9 minute read | AWD Drivetrain & Transfer Case Guides
The transfer case is the unsung hero of every AWD system. While most drivers associate all-wheel drive with traction and safety, few realize the transfer case is the component making it all possible — splitting torque between axles, managing engagement timing, and coordinating with stability and traction control systems in real time. When it fails, your vehicle loses its AWD capability entirely. New OEM transfer cases cost $900–$3,200+ depending on the platform. At GreenGears Auto, we stock inspected OEM used transfer case assemblies sourced from low-mileage donors across every major AWD platform — at 50–70% less than new pricing. This guide covers every major make, what makes each unit unique, and how to source correctly.
How AWD Transfer Cases Differ from 4WD Units
Transfer cases in AWD vehicles operate very differently from the part-time 4WD units found in body-on-frame trucks. Understanding the distinction is critical when sourcing a replacement — and explains why OEM fitment is non-negotiable on modern AWD systems.
🔄Full-Time AWD (Active) The transfer case continuously distributes torque front-to-rear without driver input. Uses a center differential or electronically controlled clutch pack to manage split ratios in real time based on wheel slip, vehicle speed, and steering angle. Found on most modern crossovers and luxury SUVs.
⚡On-Demand AWD (Reactive) The vehicle normally drives the primary axle only. The transfer case detects wheel slip and engages the secondary axle electronically when needed. Lower parasitic drag improves fuel economy. Common on Honda CR-V, Toyota RAV4, Ford Escape, and similar crossovers.
🧠Torque Vectoring AWD The most sophisticated type — the transfer case actively varies torque distribution left-to-right across an axle, not just front-to-rear. Found on performance AWD systems like Acura SH-AWD, BMW xDrive M variants, and Porsche PTM. Requires exact OEM replacement for correct operation.
🔧 GreenGears Tip — Why AWD Transfer Case OEM Sourcing Matters More Than 4WD AWD transfer cases are deeply integrated with a vehicle's ABS, stability control, traction control, and in newer vehicles, ADAS systems. An incorrect or aftermarket unit introduces calibration errors that trigger fault codes, compromise safety system function, and in some cases prevent the vehicle from passing an emissions or inspection test. OEM used is the only reliable option for modern AWD applications.
Warning Signs of a Failing AWD Transfer Case
AWD transfer case failures are often misdiagnosed as differential, driveshaft, or traction control faults. Knowing the specific symptom patterns helps confirm the diagnosis before ordering a replacement unit.
🔊 Noise Symptoms
Grinding or humming that changes with vehicle speed Whining in AWD mode that disappears in 2WD (if selectable) Clunking during acceleration or deceleration Vibration through the floor at highway speed Chain rattle from the transfer case area at startup
⚡ Warning Light & Electronic Symptoms
AWD, 4WD, or All-Wheel Drive warning light illuminated Traction control or stability control fault codes AWD system disabled message on instrument cluster ABS fault codes appearing alongside AWD codes Intermittent AWD engagement — system cuts in and out
🔩 Handling & Drivability
Loss of traction on wet or slippery surfaces where AWD previously helped Binding or tight steering — especially in tight turns Uneven power delivery front-to-rear under acceleration Vehicle pulls to one side during AWD engagement Shudder during cornering at low speed
💧 Fluid & Leak Symptoms
Transfer case fluid puddle under the center of the vehicle Burnt or dark transfer case fluid on inspection Metal particles visible in drained fluid Low fluid level with no visible external leak (internal seal failure) Milky or foamy fluid indicating water contamination
Top OEM Transfer Case Assemblies by AWD Platform
Here is a make-by-make breakdown of the most commonly needed and best-value OEM used transfer case assemblies across every major AWD vehicle platform.
🏆 Best Overall Reliability Toyota / Lexus AWD
Toyota RAV4 / Highlander / 4Runner / Lexus RX — Transfer Case Assembly
Typical Used Price: $280–$620 Toyota's AWD transfer case assemblies are among the most reliable and widely available in the used OEM market. Toyota's conservative engineering approach — favouring proven mechanical designs over complex electronics — produces transfer cases with very low intrinsic failure rates. When they do fail, it's almost always fluid-related. The enormous volume of Toyota and Lexus AWD vehicles in the US market ensures outstanding used parts availability at competitive pricing.
RAV4 AWD (2013–2022): Active Torque Control (ATC) transfer case — compact, electronically controlled, and exceptionally reliable; highest availability of any Toyota AWD transfer case RAV4 Dynamic Torque Control (2019–Present): Advanced unit with rear axle disconnect capability — confirm generation before ordering as it is not compatible with earlier units Highlander AWD (2008–2020): BorgWarner-supplied transfer case in most generations; robust unit with strong used market availability from high-volume Highlander sales 4Runner / FJ Cruiser (2003–2014): Part-time 4WD with 2-speed transfer case — simple, overbuilt, extremely long-lived; used units from low-mileage highway donors are outstanding buys Lexus RX 350/450h AWD: Shares transfer case architecture with the Highlander; Lexus donor vehicles tend to have lower mileage and better maintenance histories ⚙️ RAV4 Hybrid AWD Note The RAV4 Hybrid and RAV4 Prime use an electric motor to drive the rear axle — there is no mechanical transfer case or driveshaft. These are not transfer case applications. Confirm you have a conventionally powered AWD RAV4 before sourcing a transfer case unit.
⚙️ Most AWD-Committed Platform Subaru Symmetrical AWD
Subaru Outback / Forester / Impreza / WRX — Transfer Case / Centre Differential
Typical Used Price: $240–$580 Subaru's Symmetrical AWD is unique among mass-market AWD systems — it uses a longitudinally mounted engine and transmission that allows a true centre differential-based transfer case rather than the bolt-on transfer cases common on transverse-engine platforms. Every Subaru AWD model has a transfer case integrated into or directly adjacent to the transmission, making it the most drivetrain-specific replacement in this guide.
Outback / Forester / Impreza (non-STI): Viscous centre differential transfer unit — simple, reliable, and well-priced in the used market; 2010–2019 units are the most available WRX (2008–Present): Active Torque Split AWD transfer unit with electronically managed distribution; WRX-specific sourcing required — do not substitute Outback units WRX STI: Driver-Controlled Centre Differential (DCCD) — the most sophisticated Subaru AWD transfer unit; used STI DCCD units command a significant premium due to high demand and low supply Crosstrek AWD: Shares Impreza transfer case architecture — expanding sourcing options; 2018–2023 units are increasingly available ⚠️ Subaru Tire Diameter Warning All four tires on a Subaru AWD vehicle must be within 1/4 inch of the same diameter. Mismatched tires force the centre differential to compensate continuously — accelerating wear and causing the same symptoms as a failing transfer case. Before replacing a Subaru transfer case, always verify all four tires are correctly matched.
💰 Best Value Crossover Honda / Acura AWD
Honda CR-V / Pilot / Passport / Acura MDX / RDX — VTM-4 / SH-AWD Transfer Case
Typical Used Price: $220–$560 Honda and Acura's AWD systems span two distinct designs — the Variable Torque Management 4WD (VTM-4) system used on the Pilot and older MDX, and the electronically controlled on-demand AWD used on the CR-V, Passport, and newer RDX. Both produce excellent used OEM transfer case availability thanks to Honda's high sales volume across all platforms.
Honda CR-V AWD (2012–2022): Rear drive unit (RDU) — Honda's term for the transfer case coupling unit; compact, reliable, and among the most affordable AWD transfer case units in the used market Honda Pilot AWD (2016–Present): Intelligent Variable Torque Management (i-VTM4) — more sophisticated than the CR-V unit; electronically controlled multi-plate clutch pack transfers up to 70% of torque rearward Acura MDX SH-AWD (2014–Present): Super Handling AWD transfer unit with left-right rear torque vectoring capability; OEM used units are the only viable replacement option — aftermarket units for SH-AWD do not exist in meaningful supply Acura RDX AWD (2019–Present): Updated SH-AWD architecture with faster torque response; sourcing availability building as the fleet ages
🔩 Best for American Crossovers Ford / Lincoln AWD
Ford Escape / Edge / Explorer / Lincoln MKC / Nautilus — PTU / Transfer Case Assembly
Typical Used Price: $260–$680 Ford's AWD crossovers use a Power Transfer Unit (PTU) — Ford's terminology for the transfer case on transverse-engine AWD platforms. The PTU is mounted to the front transaxle and drives the rear axle via a prop shaft. It is one of the most commonly replaced drivetrain components on Ford's crossover lineup — largely because early PTU designs were prone to seal failure that led to fluid loss and internal damage when not caught promptly.
Ford Escape AWD (2013–2019): PTU is the single most commonly replaced drivetrain component on this platform; seal failure is the primary cause — always replace the PTU seals when installing a used unit Ford Edge AWD (2011–2018): Larger PTU than the Escape; 2015–2018 units are the most available and best-priced Ford Explorer AWD (2011–2019): PTU carries higher torque loads than the Edge or Escape; sourcing from Explorer towing-spec donor vehicles adds confidence in load capacity Lincoln MKC / Nautilus / MKX: Share PTU architecture with the Escape, Edge, and Explorer respectively — Lincoln donor vehicles typically have lower mileage and better service histories ⚠️ Ford PTU Seal Failure — Critical Installation Note The most common failure mode for Ford AWD PTUs is seal failure leading to fluid loss. A used PTU in otherwise good condition installed without new seals will frequently develop the same leak within 20,000–40,000 miles. Always install a complete PTU seal kit ($40–$80) alongside any used Ford PTU — this single step dramatically extends the service life of the replacement unit.
💪 Best for Full-Size AWD GM / Cadillac AWD
Chevrolet Equinox / Traverse / Cadillac XT5 / SRX — Transfer Case Assembly
Typical Used Price: $300–$720 General Motors uses electronically controlled transfer case assemblies across its AWD crossover and SUV lineup. The units fitted to the Equinox, Traverse, and Cadillac XT5 are BorgWarner-supplied designs with electronically managed clutch packs that provide seamless on-demand AWD engagement. GM's enormous sales volume ensures excellent used parts availability across all generations.
Chevrolet Equinox AWD (2010–2017): BorgWarner electronic transfer case — compact, well-priced, and widely available; 2013–2017 units are the best combination of reliability and used market availability Chevrolet Traverse / Buick Enclave AWD (2009–2017): Larger BorgWarner unit than the Equinox; shares architecture across Traverse, Enclave, and Acadia — broadens sourcing options Cadillac XT5 / SRX AWD: Same BorgWarner architecture as the Equinox/Traverse family with Cadillac-specific calibration; Cadillac donor vehicles have lower average mileage — worth seeking out for quality Chevrolet Traverse / GMC Acadia (2018–Present): Updated BorgWarner unit with improved torque distribution; increasingly available as this generation enters the higher-mileage salvage market
🇩🇪 European Precision AWD BMW xDrive
BMW X3 / X5 / 3 Series / 5 Series xDrive — ATC / ATC700 Transfer Case
Typical Used Price: $420–$950 BMW's xDrive AWD system is one of the most capable and most repair-intensive AWD platforms in the used market. The xDrive transfer case — branded as the ATC (Active Transfer Case) — uses an electronically controlled multi-plate wet clutch to manage torque distribution between the front and rear axles. It communicates directly with the DSC (Dynamic Stability Control), ABS, and — on M models — the Active M Differential. OEM used is the only viable replacement pathway at a sensible cost.
BMW X3 (F25, 2011–2017): ATC 35L transfer case — the most commonly available BMW xDrive transfer case unit; well-priced relative to new cost BMW X5 (E70, 2007–2013): ATC 700 transfer case — larger unit for the full-size X5; 3.0i and 4.8i variants use the same unit, simplifying sourcing BMW X5 (F15, 2014–2018): Updated ATC design with improved efficiency; increasingly available from accident donors BMW 3 Series / 5 Series xDrive: Compact ATC unit designed for the sedan and wagon platforms; shares architecture with the X3 on many model years 💡 BMW xDrive Transfer Case Coding After installing a used xDrive ATC unit, BMW requires the replacement to be coded to the vehicle using BMW ISTA+ or ENET diagnostic software. Without coding, the xDrive system may default to a limp mode with limited rear torque distribution. Factor dealer or independent BMW shop coding time into your total repair budget.
🇩🇪 4MATIC Specialist Mercedes-Benz 4MATIC
Mercedes GLE / GLC / C-Class / E-Class 4MATIC — Transfer Case Assembly
Typical Used Price: $480–$1,100 Mercedes-Benz 4MATIC systems use a transfer case integrated with the transmission on most platforms — on the 7G-Tronic and 9G-Tronic automatic transmission families, the transfer case is a bolt-on rear output unit that can be serviced independently. Mercedes 4MATIC transfer cases are among the most expensive to replace new, making OEM used sourcing particularly compelling on these vehicles.
GLC 300 4MATIC (2016–Present): Compact transverse AWD transfer unit — increasingly available as 2016–2019 units enter the higher-mileage salvage market GLE 350 / GLE 450 4MATIC: Longitudinal transfer case with 45/55 default front/rear split; variable distribution capability; OEM used units from low-mileage US-market donors are the best sourcing option C-Class / E-Class 4MATIC: Compact transfer case units with strong used availability due to high C-Class and E-Class sales volumes G-Class (G550 / G63 AMG): Three-differential AWD with dedicated transfer case and two locking differentials; used units command significant premiums due to low supply and extreme replacement cost new
🇩🇪 Quattro & 4Motion Audi Quattro / VW 4Motion
Audi Q5 / A4 / A6 Quattro / VW Tiguan / Atlas 4Motion — Transfer Case
Typical Used Price: $380–$880 Audi's Quattro and Volkswagen's 4Motion systems share Torsen-based and Haldex-based transfer case designs depending on the specific model and generation. Longitudinal Quattro (Audi A4, A6, Q5 on the MLB platform) uses a Torsen centre differential — the most mechanically elegant and least failure-prone AWD transfer system in this guide. Transverse Quattro (Audi TT, A3) and VW 4Motion use a Haldex electronically controlled coupling — a different design with its own service requirements.
Audi Q5 / A4 / A6 Quattro (MLB platform, 2017+): Torsen centre differential transfer case — virtually failure-proof when fluid is maintained; used units are a premium find due to low failure rate Audi Q5 (B8, 2009–2017): Haldex Gen 4/5 rear differential coupling — the most commonly replaced Quattro component; used units widely available from the large B8 Q5 fleet VW Tiguan 4Motion (2009–2017): Haldex coupling — same sourcing considerations as the B8 Q5; cross-reference with Audi Q3 and Skoda Yeti for expanded availability VW Atlas 4Motion (2018–Present): Larger Haldex-based unit for the full-size Atlas; increasingly available as early units enter the used market
AWD Transfer Case Quick Reference Guide
Make / Platform Transfer Case Type Used Price Range Availability OEM Critical? Toyota RAV4 / Highlander Electronic ATC / ATC4 $280–$580 ⭐⭐⭐⭐⭐ Yes Subaru Outback / WRX Viscous / DCCD Centre Diff $240–$580 ⭐⭐⭐⭐⭐ Yes Honda CR-V / Pilot AWD RDU / i-VTM4 $220–$520 ⭐⭐⭐⭐⭐ Yes Acura MDX / RDX SH-AWD SH-AWD Torque Vectoring $380–$560 ⭐⭐⭐⭐ Critical Ford Escape / Edge / Explorer PTU (Power Transfer Unit) $260–$680 ⭐⭐⭐⭐⭐ Yes Chevy Equinox / Traverse BorgWarner Electronic $300–$680 ⭐⭐⭐⭐⭐ Yes BMW X3 / X5 xDrive ATC / ATC700 $420–$950 ⭐⭐⭐⭐ Critical Mercedes GLE / GLC 4MATIC 4MATIC Transfer Unit $480–$1,100 ⭐⭐⭐⭐ Critical Audi Q5 / A4 Quattro Torsen / Haldex $380–$880 ⭐⭐⭐⭐ Critical VW Tiguan / Atlas 4Motion Haldex Coupling $320–$680 ⭐⭐⭐⭐ Yes
OEM Used vs. Remanufactured vs. Aftermarket
🏭 Remanufactured / Aftermarket
Reman cost: $600–$1,800 — plus core charge of $200–$500 Quality entirely dependent on rebuilder — no OEM quality assurance Electronic components (solenoids, sensors) often reused from worn cores Calibration to vehicle's ECU not guaranteed — fault codes common post-install Core charge adds upfront cost and return shipping hassle New manufacturing environmental footprint on all replacement components
♻️ OEM Used — GreenGears Auto
Used OEM cost: $220–$1,100 — no core charge Original factory assembly — no rebuilt internals or reused worn components Factory electronic calibration intact — correct OEM integration Mileage-verified from documented low-mileage donor vehicle Free shipping in 3–7 days across the continental US 280 lbs CO₂ prevented per unit vs. new manufacturing
What to Inspect Before Buying a Used AWD Transfer Case
Verify Donor Mileage and Service History
AWD transfer case life is directly tied to fluid maintenance. A 60,000-mile unit from a vehicle with regular fluid changes will outlast an 80,000-mile unit from a vehicle with no documented service history. Always request documented donor mileage — GreenGears Auto records and verifies this on every listing. Drain and Inspect Fluid Condition
Healthy AWD transfer case fluid is amber or light brown and free of metallic particles. Dark, burnt fluid indicates thermal overload or extended neglect. Milky or foamy fluid indicates water contamination — a serious finding that should disqualify the unit. Metal flakes in the fluid indicate internal gear or bearing wear that may be progressive. Inspect All Seals and Mating Surfaces
Check the input shaft seal, both output shaft seals, and the housing mating surface for active weeping or dried residue. For Ford PTU units, seal condition is especially critical — seal failure is the most common PTU failure mode and a used unit with compromised seals will repeat the same failure quickly. Verify Electronic Component Integrity
For electronically controlled AWD transfer cases (BMW ATC, Mercedes 4MATIC, Honda i-VTM4, Ford PTU), inspect the solenoid connectors, wiring harness stub, and any integrated sensors for physical damage, corrosion, and broken pins. A mechanically sound transfer case with damaged electronics will not function correctly after installation. Confirm Exact Application by VIN
AWD transfer cases vary by engine, transmission, model year, and trim level within the same nameplate. A 2016 Honda Pilot with a 9-speed transmission uses a different transfer case than a 2015 Pilot with a 6-speed. Always cross-reference via the donor vehicle's VIN — part number matching alone is not sufficient for electronically controlled units where software calibration may differ. Check Housing for Cracks and Impact Damage
Inspect the complete external surface of the housing — particularly the bottom and sides, which are most exposed to road debris. Cracks in the housing are disqualifying regardless of how minor they appear. A cracked housing cannot be reliably sealed and will leak under operating temperature and pressure.
✅ GreenGears Auto's AWD Transfer Case Promise Every AWD transfer case in our inventory is inspected across all six points above before listing. Fluid condition, seal integrity, electronic component status, and donor mileage are documented on every unit. Each is backed by our 90-day satisfaction guarantee with free US shipping and no core charge.
Installation Best Practices for AWD Transfer Cases
Always replace all input and output shaft seals at installation — seal kits cost $30–$90 and prevent the most common post-install failure mode across all AWD platforms Fill with the manufacturer-specified transfer case fluid — using the wrong fluid in an electronically controlled AWD unit causes clutch pack wear, shudder, and premature failure; never substitute generic ATF On BMW xDrive units, code the replacement ATC to the vehicle using ISTA+ before returning to the owner — uncoded units run in a limited default mode On Ford PTU units, inspect and replace the vent tube and breather at installation — a blocked PTU vent causes internal pressure buildup that destroys the output seals Clear all AWD, ABS, and stability control fault codes after installation and perform a calibration drive before finalising the repair On Subaru AWD vehicles, verify all four tires are matched in diameter within the specified tolerance before returning the vehicle — mismatched tires will damage the replacement unit For Mercedes 4MATIC and Audi Quattro applications, verify driveshaft balance and U-joint condition before installation — drivetrain vibration is frequently misdiagnosed as transfer case noise after a swap Road test comprehensively in AWD conditions — wet pavement or gravel is ideal — before completing the repair to verify correct AWD engagement and absence of noise or vibration
Need an OEM Transfer Case for Your AWD Vehicle?
Tell us your year, make, model, engine, and transmission — our AWD drivetrain specialists will locate the right inspected OEM unit and get it to you in 3–7 days with free shipping and no core charge.
GreenGears Auto — Drive Green. Drive Smart.
✅ 6-Point Inspection 🚚 Free US Shipping ↩️ 15-Day Returns 📋 No Core Charge link hidden, please login to view -
By Counterman
FCS Automotive announced the release of 29 new part numbers, now in stock and ready to ship. The expansion strengthens suspension coverage for more than 5 million vehicles on the road in the U.S. and Canada.
Expanded Suspension Coverage
link hidden, please login to view said the new part numbers reinforce its commitment to comprehensive, up-to-date coverage. The additions support key suspension categories that installers rely on for everyday service and repair, the company said. The release expands coverage across complete strut assemblies, suspension struts, shock absorbers and lift supports. Each product is engineered to deliver OE-quality fit and performance, according to FCS Automotive.
Popular Vehicle Applications
The new parts support several high-volume vehicle applications. These include the Nissan Rogue, Mitsubishi Outlander and Ford Explorer.
The post
link hidden, please login to view appeared first on link hidden, please login to view.
link hidden, please login to view -
By Counterman
FCS Automotive announced the release of 29 new part numbers, now in stock and ready to ship. The expansion strengthens suspension coverage for more than 5 million vehicles on the road in the U.S. and Canada.
Expanded Suspension Coverage
link hidden, please login to view said the new part numbers reinforce its commitment to comprehensive, up-to-date coverage. The additions support key suspension categories that installers rely on for everyday service and repair, the company said. The release expands coverage across complete strut assemblies, suspension struts, shock absorbers and lift supports. Each product is engineered to deliver OE-quality fit and performance, according to FCS Automotive.
Popular Vehicle Applications
The new parts support several high-volume vehicle applications. These include the Nissan Rogue, Mitsubishi Outlander and Ford Explorer.
The post
link hidden, please login to view appeared first on link hidden, please login to view.
link hidden, please login to view -
-
By Counterman
Every parts store is unique. Among independents, the differences are more obvious, with varied locations and floorplans, specialized product mixes and a diverse cast of characters behind each particular counter. Even among the large retail chains, where familiarity and consistency are paramount to building a strong brand identity, each location still maintains a distinct personality.
The “feel” of the parts store experience is due in large part to the customer base each store serves. In decades past, many parts counters were the domain of commercial customers, with a strong focus on wholesale operations. A more “casual” atmosphere (for better or worse) and a focus on function over form reflected this customer base. Locations relied primarily on establishing long-term relationships with professional service providers rather than attracting foot traffic from the general public. Modern jobbers still maintain strong ties to their commercial clientele, with a strong business-to-business (B2B) marketing style, but have warmed to the DIY market and their growing expectations of what a parts store provides.
When it comes to the retail side of aftermarket sales, marketing your business directly to the consumer (B2C) requires casting a much broader net. Uniformity is a key factor in the success of the DIY retail market. While the ownership and operations of a corporate store and a franchised business are markedly different behind the scenes, both rely heavily on the familiarity and uniformity of their brands. Independent stores may use their individuality to differentiate themselves from competitive businesses, but retail chains firmly embrace the principles of standardization. Having a consistent product offering at each location, combined with familiar floorplans and planograms, as well as uniform policies and standards make each location a part of something much bigger than itself. Ray Kroc built a fast-food empire from a single McDonald’s location on these principles, and they allow for a scalability that would be difficult for even the most aggressive independent to duplicate.
The biggest variable in either type of business comes from their customer base. As retailers entered their markets, independents devoted more effort into attracting the attention (and resources) of the DIY crowd, with varying levels of success. Those who leveraged their expertise and individuality were rewarded with a client base hungry for something more fulfilling than fast food. While DIYers readily embraced the “big box” offerings, wholesale commercial buyers were much slower to accept the mass-market nature of retailers. For jobber stores, the DIYer had often been an afterthought, and retailers had previously overlooked commercial opportunities in favor of the weekend warrior.
The personality of any parts store ultimately comes down to the people on both sides of the counter. Despite any designed-in continuity between locations, one major variable will always be people. Differences in demographics may influence consumer buying habits as well as determine the product mix required to maximize inventory turns for an individual location. It also dictates the expected ratio of commercial to retail engagement with your store. Affluent or older drivers may rarely come to a store seeking parts for their own vehicles, but the shops providing service to these people still rely on us daily. Enthusiasts with a more hands-on attitude may spend their time and money with you specifically for the product lines you carry, the personnel behind your counter or a combination of factors that they have failed to find anywhere else. People buy from people, and unless we can clone all our best employees, no two stores, no matter how well-stocked, will ever be quite identical. Wholesale, retail or a combination of the two, it’s variety that keeps the aftermarket flourishing!
